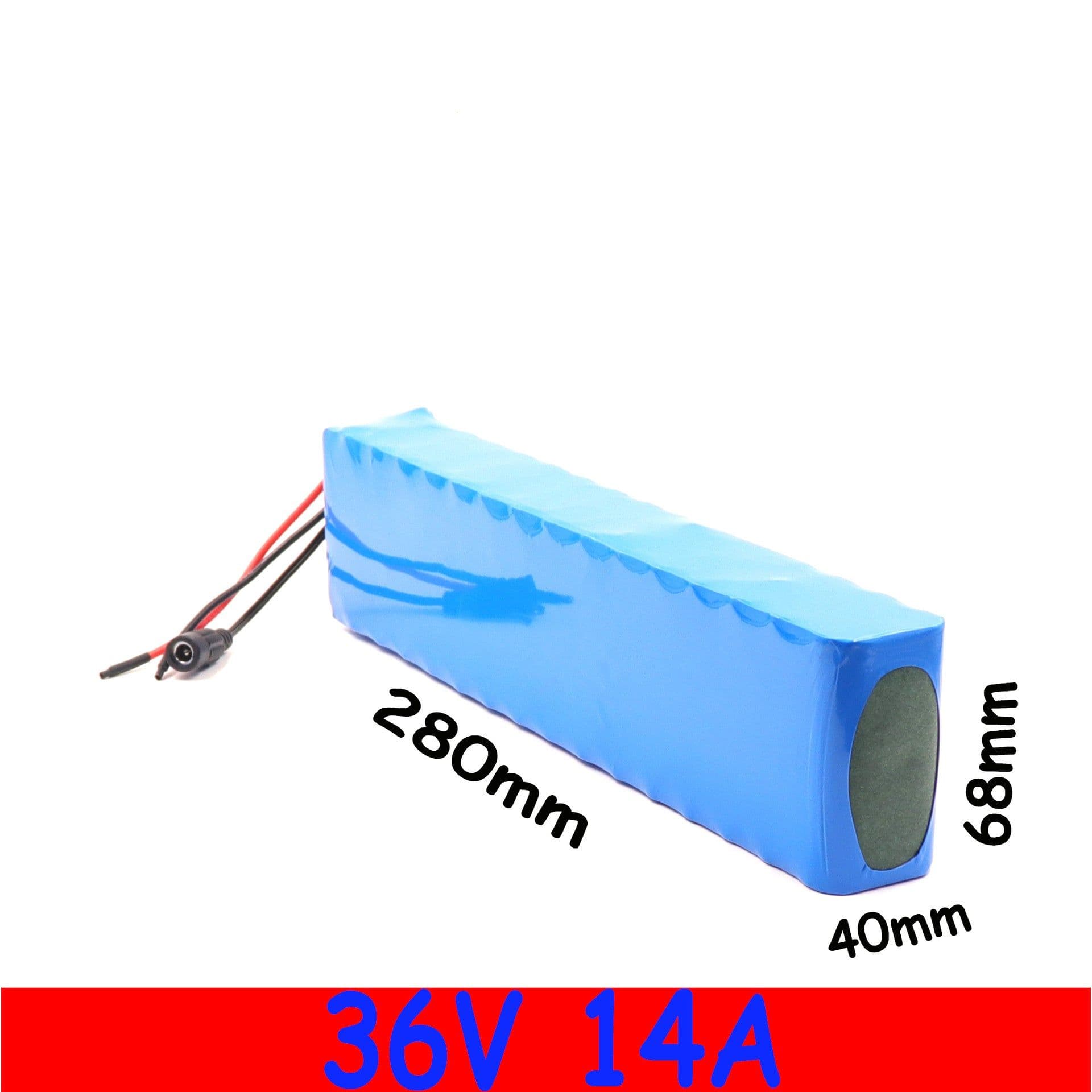

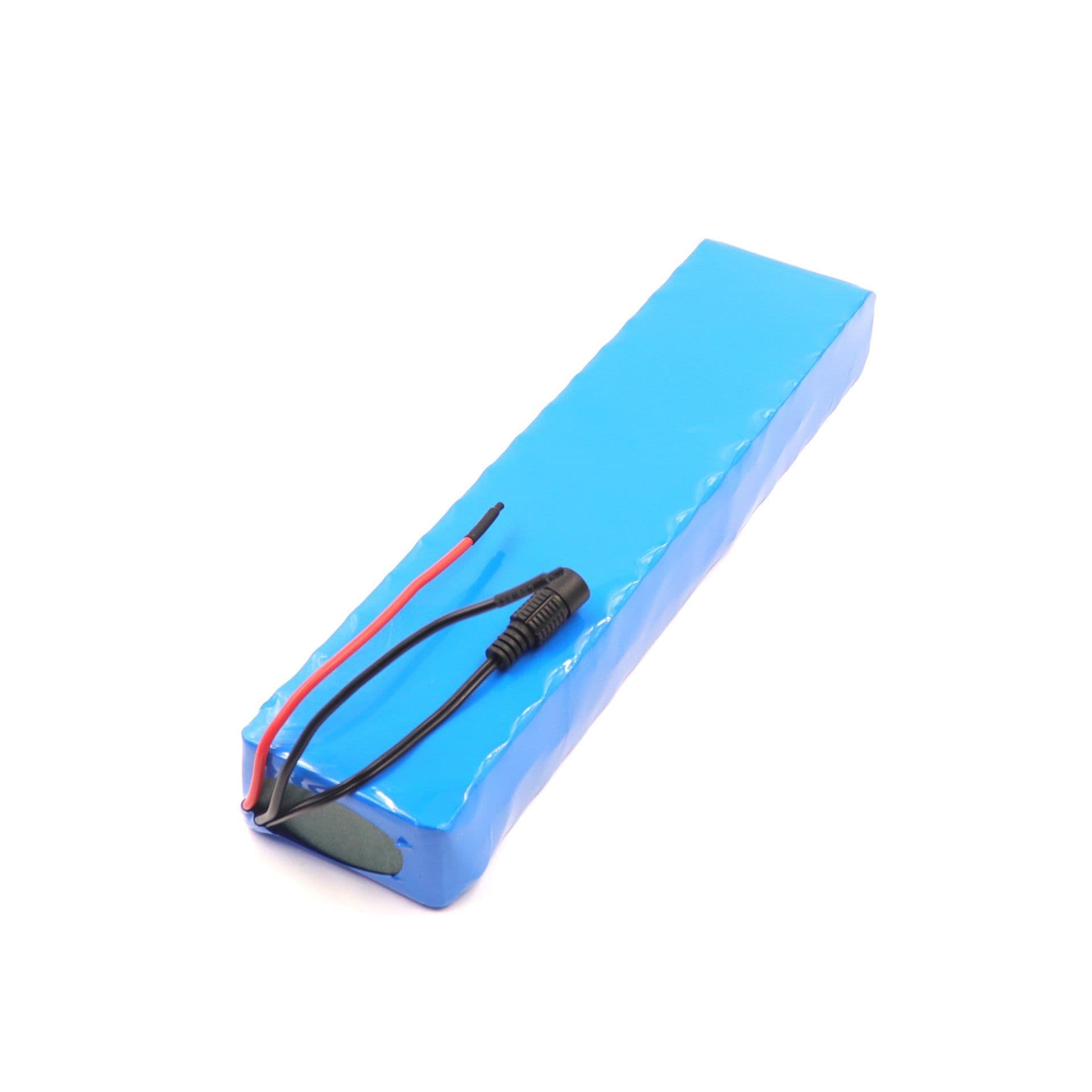

Product information: Battery model: 36V10A-10S3P Nominal voltage: 36V Charging voltage: 42V Typical capacity: 14Ah Minimum capacity: 9Ah Rated power: 600Watt BMS rated current: the discharge current of different ports is 30A, and the charging current is 5A BMS function: overcharge, overdischarge, overcurrent, short circuit protection. Connectors: Tplug for discharging and DC5521 for charging Output voltage range: 28V-42V Discharge cut-off voltage: 28V Charge cut-off voltage: 42V Charging method: CC-CV Maximum charging current: 5A Charging temperature: 0-45°C Discharge temperature: -10-60℃ Storage temperature: -20-45°C (3 months) Cycle life: 80% DOD after 500 cycles Size: 300*66*38mm (±3mm) Note: The battery pack does not have a communication cable. If your electric bike primary battery needs to communicate with the controller, that battery cannot be used to replace the primary battery. It can only be used to extend the battery Packing list:Scooter replacement battery*1
Description
Product information: Battery model: 36V10A-10S3P Nominal voltage: 36V Charging voltage: 42V Typical capacity: 14Ah Minimum capacity: 9Ah Rated power: 600Watt BMS rated current: the discharge current of different ports is 30A, and the charging current is 5A BMS function: overcharge, overdischarge, overcurrent, short circuit protection. Connectors: Tplug for discharging and DC5521 for charging Output voltage range: 28V-42V Discharge cut-off voltage: 28V Charge cut-off voltage: 42V Charging method: CC-CV Maximum charging current: 5A Charging temperature: 0-45°C Discharge temperature: -10-60℃ Storage temperature: -20-45°C (3 months) Cycle life: 80% DOD after 500 cycles Size: 300*66*38mm (±3mm) Note: The battery pack does not have a communication cable. If your electric bike primary battery needs to communicate with the controller, that battery cannot be used to replace the primary battery. It can only be used to extend the battery Packing list:Scooter replacement battery*1
