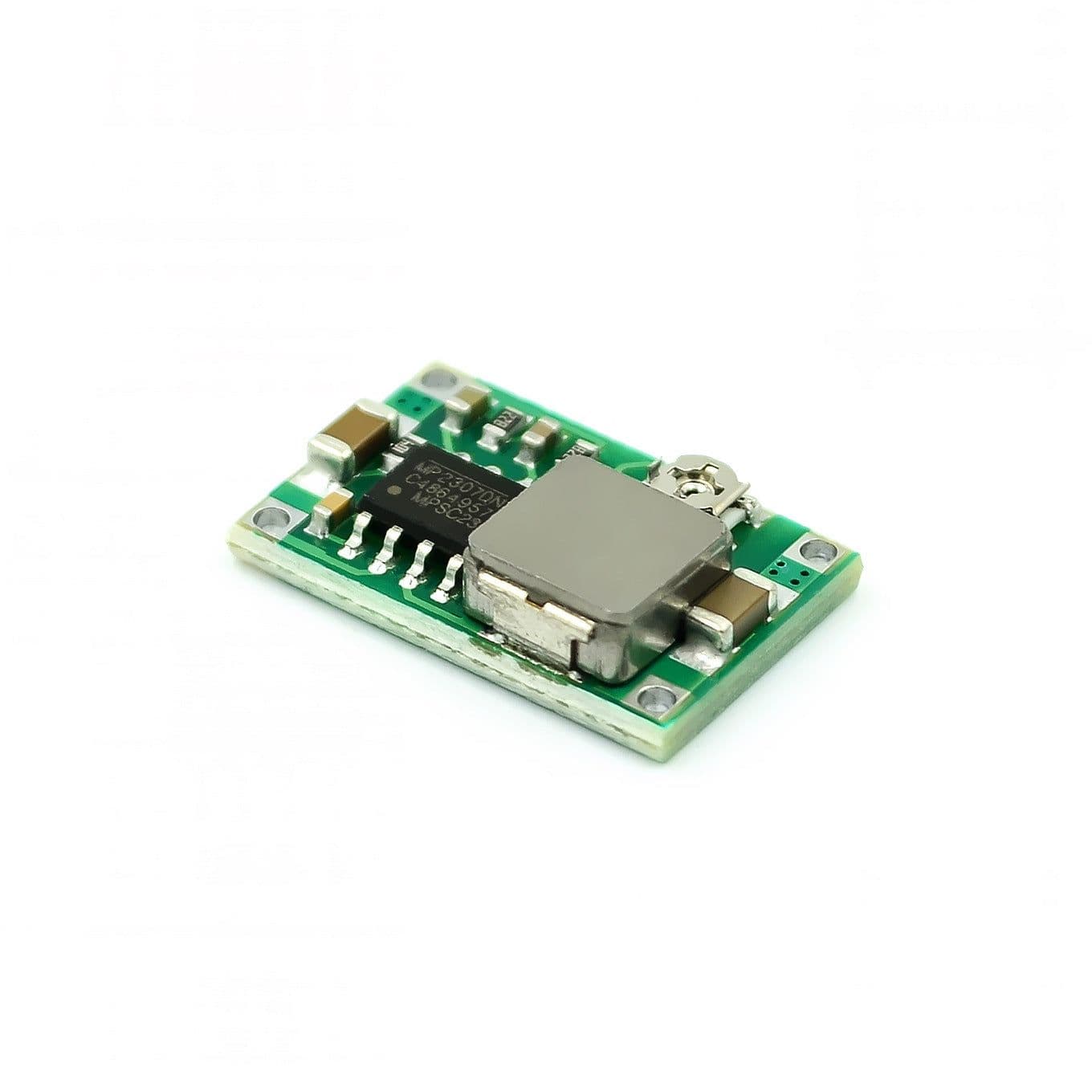

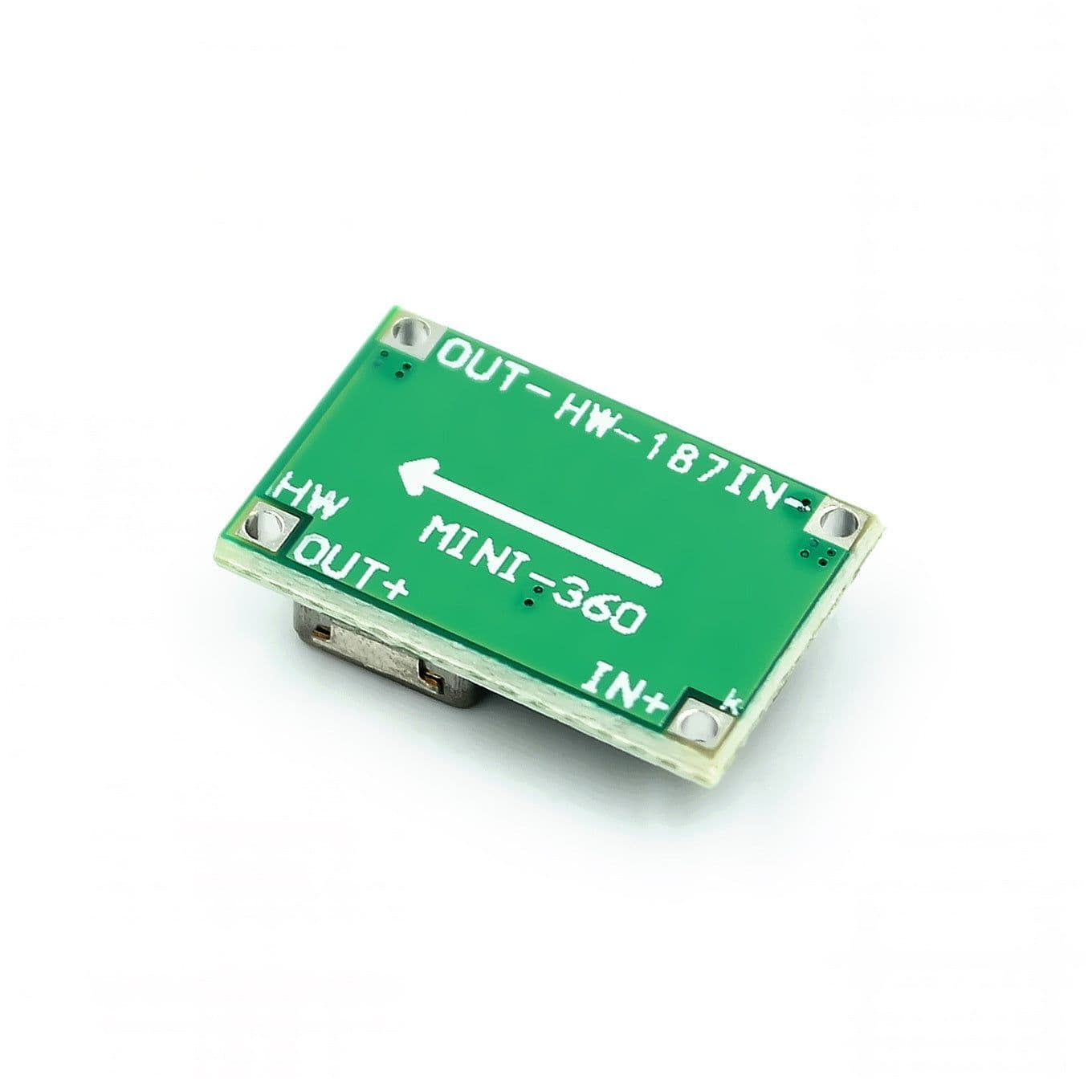

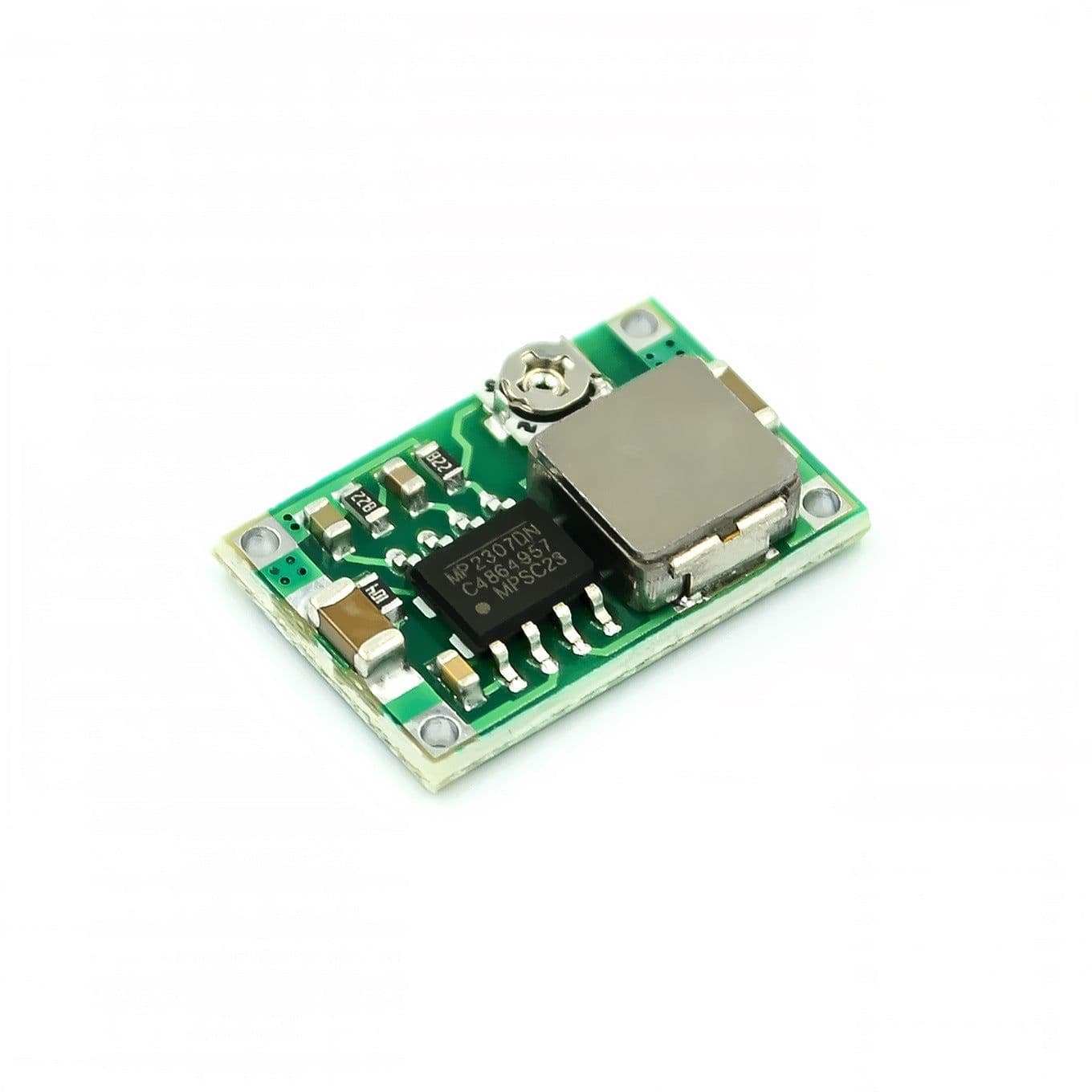

The Mini 360 DC Buck Converter is an ultra-compact, non-isolated DC-DC step-down module designed for efficient power conversion in space-constrained applications. This synchronous rectifier buck module delivers stable regulated voltage with minimal ripple.
- Input Voltage Range: 4.75V to 23V, accommodating a wide range of power sources
- Output Voltage Range: 1.0V to 17V, fully adjustable for various load requirements
- Output Current: Up to 3A peak, 1.8A continuous operation
- Conversion Efficiency: 96% maximum efficiency with synchronous rectification technology
- Switching Frequency: 340KHz for reduced electromagnetic interference
- Output Ripple: Only 30mV at no-load for clean power delivery
- Load Regulation: ±0.5% maintains stable output under varying loads
- Voltage Regulation: ±2.5% accuracy ensures reliable performance
- Compact Design: 17 × 11 × 3.8mm dimensions with integrated power inductor
- Operating Temperature: -40°C to +85°C wide temperature range
The Mini 360 features an integrally molded power inductor and synchronous rectifier control chip for superior efficiency and minimal size. This step-down converter is ideal for LED drivers, battery chargers, and portable electronics requiring reliable voltage regulation in compact form factors.
Description
The Mini 360 DC Buck Converter is an ultra-compact, non-isolated DC-DC step-down module designed for efficient power conversion in space-constrained applications. This synchronous rectifier buck module delivers stable regulated voltage with minimal ripple.
- Input Voltage Range: 4.75V to 23V, accommodating a wide range of power sources
- Output Voltage Range: 1.0V to 17V, fully adjustable for various load requirements
- Output Current: Up to 3A peak, 1.8A continuous operation
- Conversion Efficiency: 96% maximum efficiency with synchronous rectification technology
- Switching Frequency: 340KHz for reduced electromagnetic interference
- Output Ripple: Only 30mV at no-load for clean power delivery
- Load Regulation: ±0.5% maintains stable output under varying loads
- Voltage Regulation: ±2.5% accuracy ensures reliable performance
- Compact Design: 17 × 11 × 3.8mm dimensions with integrated power inductor
- Operating Temperature: -40°C to +85°C wide temperature range
The Mini 360 features an integrally molded power inductor and synchronous rectifier control chip for superior efficiency and minimal size. This step-down converter is ideal for LED drivers, battery chargers, and portable electronics requiring reliable voltage regulation in compact form factors.
